Introduction of Helium Leak Detector:
Helium Leak Detector
Helium leak testing is a method that is used to detect and locate leaks in many different industrial applications. This process involves pressurizing the system or having a component tested with a helium gas mixture. This is then followed by specialized helium leak detectors that are used to sense and measure the helium that escapes from any leaks. By analyzing the amount and concentration of helium, technicians are able to find the exact location of the leak.
Technical Parameters of Helium Leak Detector:

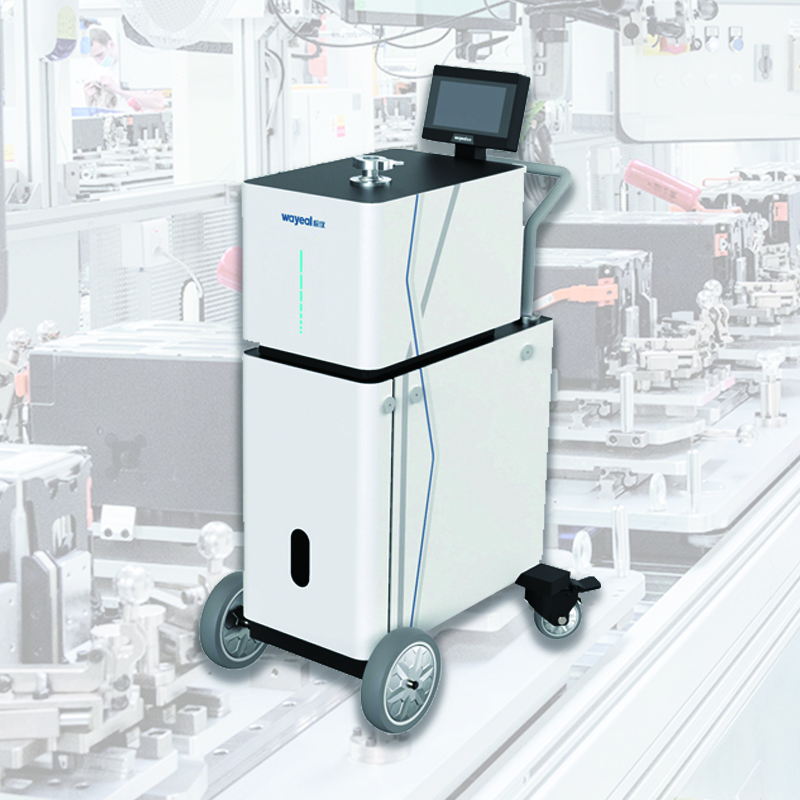

| SFJ-16C Mobile Trolley Design Vaccum Helium Leak Detector Machine Price |
| Product Name | Helium Leak Detector |
| Detection Method | Helium Mass Spectrometer |
| Leak Detection Port | DN25KF |
| Leak Rate Display | Numbers, Bar Charts, Graphs |
| Response Time(s) | <1s |
| User Interface | 7inch Color Touch Screen |
| Operating temperature | 0~40°C |
| Max Allowable Leak Detection Pressure (Pa) | 1800 |
| Communication Interface | RS232/485, LAN |
| Detectable Quality | 2, 3, 4 (H2, He-3, He-4) |
| Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode | 5.0*10 -13 Pa·m3/s |
| Mini Leak Detection Rate(Pa·m3/s)/Vacuum Mode | 2.5*10-9 Pa·m3/s |
| Startup Time (min) | ≤2 |
| Diamension | 475*714*1168mm |
| Power Supply | AC220V, 50Hz/60Hz |
| Language | Chinese/English |
Applications of Helium Leak Detector:
The Wayeal SFJ-16C Helium Leak Detector can be used in various industries and scenarios, including:
1. Automotive: for leak detection in engine blocks, fuel tanks, and other components
2. Aerospace: for identifying leaks in aircraft components and systems
3. HVAC: for detecting leaks in refrigeration systems and air conditioning units
4. Medical Equipment: for testing the integrity of medical devices and equipment
5. Gas Detection: for detecting leaks in gas pipelines, valves, and tanks
6. Vacuum System Maintenance: for monitoring and maintaining vacuum systems in various industries
Methods of Helium Leak Detection (Helium Leak Detector)
Helium Vacuum Method
Helium Hood Method
Negative Pressure Method
Vacuum Chamber Helium Leak Detection and Recovery System (external filling)
Sniffer Method
